Calf Implants

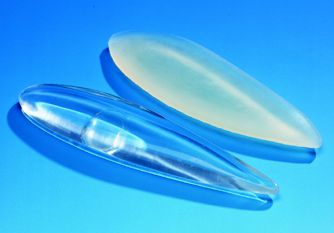

Nagor® smooth calf implants are designed to offer surgeons the options of shape and silicone composition required for successful aesthetic reconstruction or augmentation of the calf.

The high viscosity gel-fill calf implant is anatomically shaped to augment the calf whilst the alternative solid elastomer calf implant offers the option to represent the medial and lateral gastrocnemius muscle for reconstruction or augmentation of the calf.

Nagor® smooth calf implants are designed for use following trauma or burn injury or cosmetic augmentation of the calf due to aplasia, congenital hypoplasia or hypoplasia following poliomyelitis, osteomyelitis, cerebral palsy.
Two separate and individual designs
Silicone composition options
Solid elastomer or silicone gel-fill options available to accommodate clinical requirements
Solid elastomer design
Small and large size options available in the shape of the medial and lateral gastrocnemius muscle enable surgeon to meet individual patient requirements
Designed to be used as a pair to alleviate pressure on the sural nerve
Provides more width to the calf profile for cosmetic augmentation procedures when used as a pair
Solid elastomer facilitates shape adjustment by surgeon with scalpel or scissors to meet individual patient requirements
Gel-fill ellipsoid contour design
Designed for cosmetic augmentation or reconstructive surgery
Barrier Shell Technology surface
Restricts gel permeation through the entire implant surface
High performance silicones
Maximises strength and durability and retains soft, pliable characteristics to facilitate insertion
Strong seals
To maintain optimum mechanical characteristics
High Quality Raw Materials
Implant grade raw materials from a fully certified source are used to create all components of the product range
Individual product inspection
QA tested through every manufacturing stage to ensure complete conformance of individual components and finished product

Gel Fill
Product Code Volume
(ml)		  A
(mm) 		B
(mm)		 C
(mm)
CFI-G 1 55 170 40 17
CFI-G 2 120 215 46 22
CFI-G 3 180 250 56 28

Product Code Size  A
(mm) 		B
(mm)		 C
(mm)
CFI-SF Small 190 55 10
CFI-SM Large 210 65 15

Approximate Dimensions: All dimensions and volumes detailed in Nagor® calf implant specification charts are approximate and slight variations may occur.

Nagor® calf implants are supplied sterile in a single packaged unit.
Custom Fabrication
A customised service to meet individual patients requirements is available upon request. Options include smooth or textured surfaces, gel-fill or soft-solid elastomer material, posterior ligature loops and tissue expansion devices.

Please contact our Custom Fabrication Service – Customer Support Team for further details.
